Details
The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand-selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradeable over time. The Revo is packed full of great features like 25-9 gearing and short/responsive pro-inspired geometry.

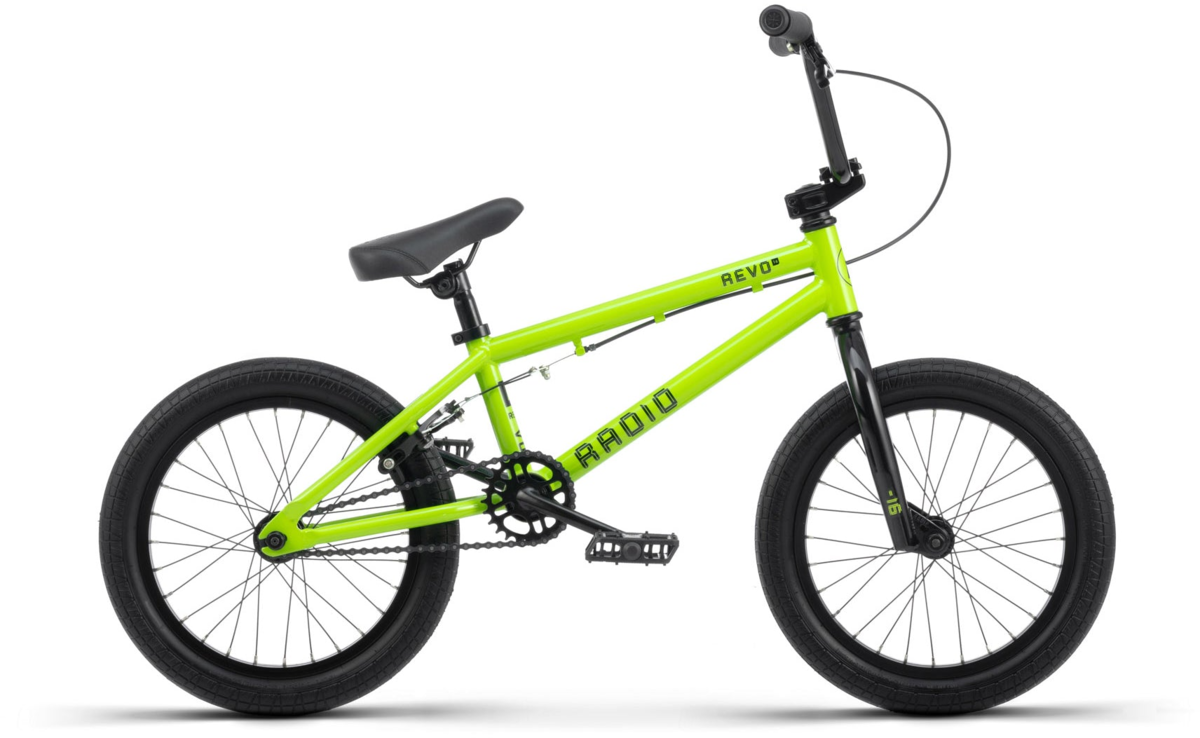

The Radio Bikes Revo 16" Complete Bike is a scaled-down version of the 20". We designed the Revo to follow a similar responsive geometry set as our Dice 16", allowing the younger rider to really put this bike through its paces. Despite the low price point, you’ll find plenty of neat details on the Revo 16" including the tapered fork blades and even an alloy seat post to help shred the grams.
Top Tube Length | 16" |
---|---|
Chain Stay Length | 11.2" |
Head Tube Angle | 75° |
Seat Tube Angle | 71.5° |
Bottom Bracket Height | 9.75" |
Standover Height | 6.6" |
Specs
Frame | RADIO “REVO 16” frame, full 1020 hi-ten |
---|---|
Fork | RADIO “ROOKIE 16” fork, hi-ten |
Rims | SALT “AM” rim, straight single wall, 28h |
Hubs |
FRONT HUB: RADIO “Rookie” steel hub, lb, 28h REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 3/8? axle, 28h |
Tires | RADIO “ROOKIE” tires, 16"x2.1", front & rear |
Bottom Bracket | USA size, loose ball |
Crankset | RADIO “ROOKIE” 1pc crank, forged, crmo, 127mm |
Chainrings | RADIO “ROOKIE” sprocket, steel, 25t |
Cassette/Freewheel | 9t, cassette |
Chain | KMC “S1” chain |
Brakes | RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear |
Brake Levers | RADIO “JUNIOR 16” brake lever, alloy |
Handlebars | RADIO “REVO 16” bar, hi-ten |
Tape/Grips | RADIO “JUNIOR” grips, flangeless, 130mm |
Stem | SALT “JUNIOR” topload stem, 40mm reach |
Headset | FSA “a-head-set” loose ball |
Seatpost | RADIO ‘AM” alloy seatpost |
Saddle | RADIO “Century” railed seat |
Pedals | RADIO “Rookie” Nylon Pedals |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Light Green / 16-inch / 16-inch | 04055822538374 | 100001613 |
