Devinci Troy ST GX AXS 12s

Devinci Troy ST GX AXS 12s
$6,999.00
Color: Stoneware Orange | Gloss
Size: Select size
Please select options Unavailable
This item can be picked up curbside or delivered within the city!

Details

The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.

The Troy ST! Small but mighty. With 130mm - 140mm of travel, it’s the sweet spot for just about anything. Agile, lively, and responsive, the ST is the black belt in the Troy family. From big missions in the alpine to epic singletracks or more casual family rides, it’s ready to answer the call.

*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.

Proudly made here. Each frame that bears our Made in Canada stamp represents our commitment to quality and sustainability.

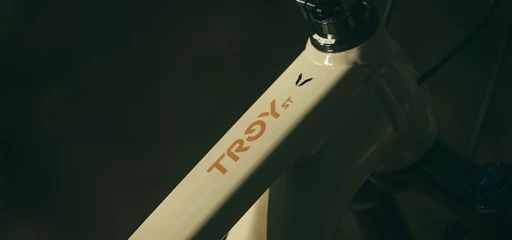

Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes. The Optimum G04 designation appears on our high-end mountain bikes and electric mountain bikes.

The love of riding lasts a lifetime. Now your bike can too.

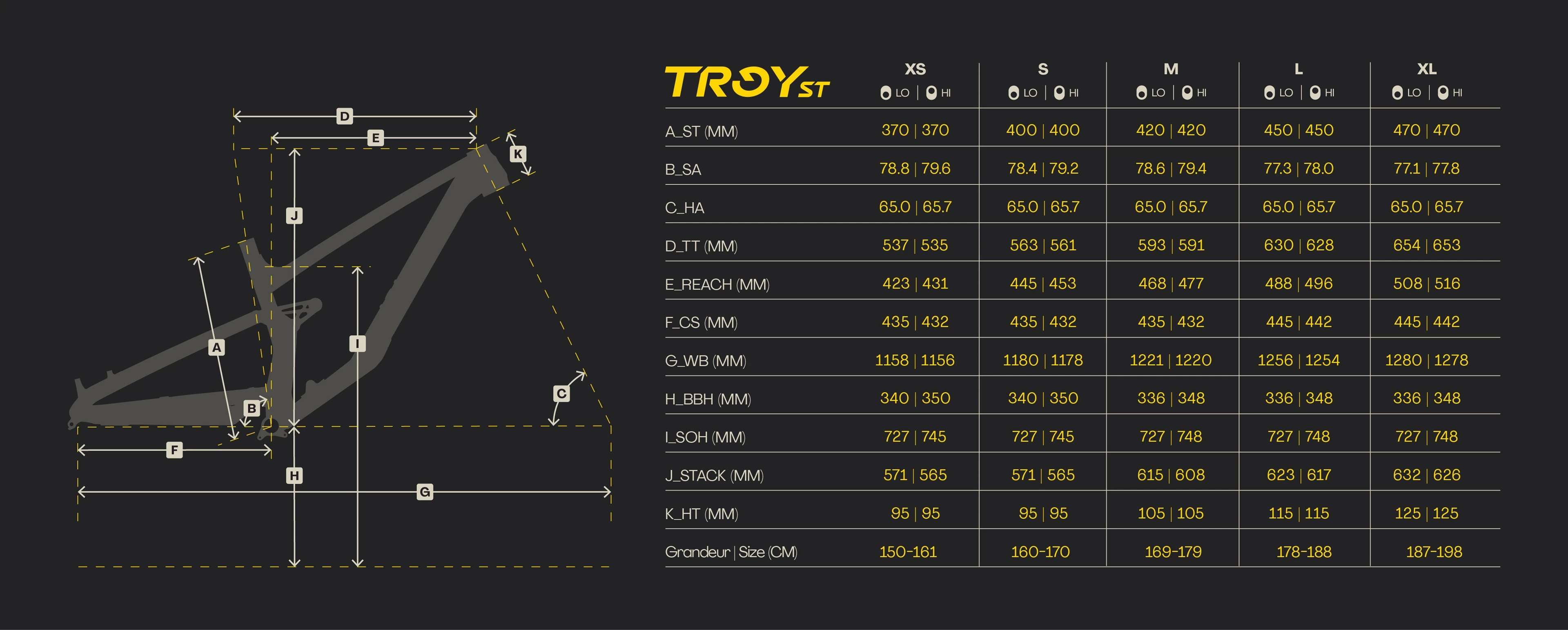

The improved geometry makes the Troy more capable than ever. Featuring a slacker head angle for confidently tackling technical sections, while a steeper seat tube angle helps you motor up the climbs.

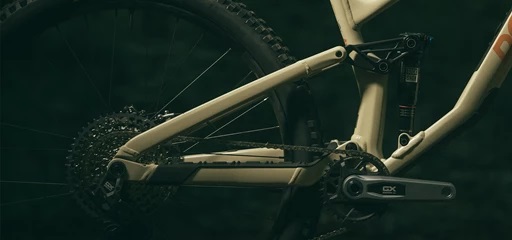

Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.

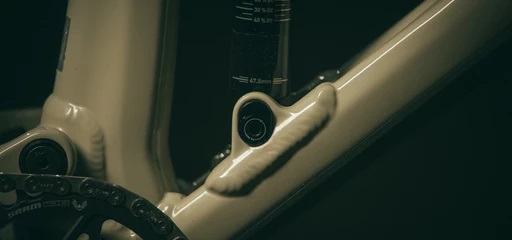

The flip chip allows for the use of either a 27.5'' or 29'' rear wheel without altering the bike's geometry.

Shorter chainstays on sizes S and M and longer chainstays on sizes L and XL for a fully balanced ride feel on the trail, while size-specific front triangles improve stability and handling.
435mm on S - M
445mm on L - XL

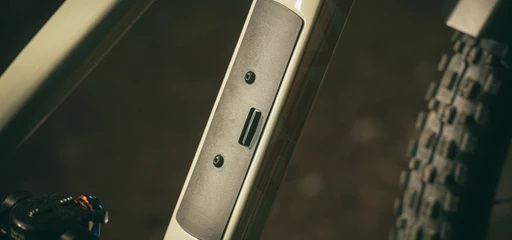

Never leave your must-haves at home again. The all-new in-frame storage system lets you bring everything you need on every ride without having to carry it on your back. The Shed storage system lets you store tubes, tools, and snacks in your frame.

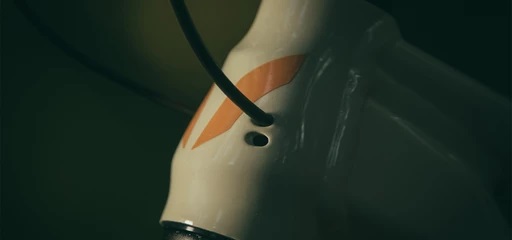

The overall chassis aesthetics are kept clean and discreet while protecting cables and housings.

Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Pike Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Deluxe Ultimate takes care of rear shock duties, delivering incredible traction, tunability, and control.

The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.

Specs

Frame FSA Orbit | 1.5 | Zero Stack
Fork RockShox Pike Ultimate Charger 3.1 RC2 SB 140 | 44 Offset
Rear Shock Rockshox Deluxe Ultimate 185x47.5
Rims/Wheels RaceFace ARC30 27.5 | 30mm inner | TR
Hubs RaceFace Vault | 6bolts | TA 15x110mm / RaceFace Vault | Boost148x12 | XD | 6bolts
Tires Front: Maxxis Assegai | 27.5x2.5WT | 3C | EXO | TR | MaxxTerra / Rear: Maxxis Dissector | 27.5x2.4WT | 3C | Exo+ | TR | MaxxTerra
Crankset SRAM GX Eagle AXS | T-Type | 32T | 1Guard | Boost 148
Bottom Bracket SRAM DUB 73mm Threaded
Chain SRAM GX | T-Type | 12s
Rear Derailleur SRAM GX Eagle AXS | T-Type | 12s
Rear Cogs SRAM XS1275 | T-TYPE | 12s | 10-52T
Shifters SRAM AXS POD | 12s
Brakes SRAM Level Silver | 4 pistons
Weight 15.40 kg / 33.95 lb *For a size medium complete bike, weight approximate and subject to change. Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Stoneware Orange | Gloss / X-Small
Stoneware Orange | Gloss / Small
Stoneware Orange | Gloss / Medium 883385227183 FV24081352 DEV31412718D
Stoneware Orange | Gloss / Large 883385227176 FV24081452 DEV31968794G
Stoneware Orange | Gloss / X-Large
