Details
TRAIL HARDTAIL

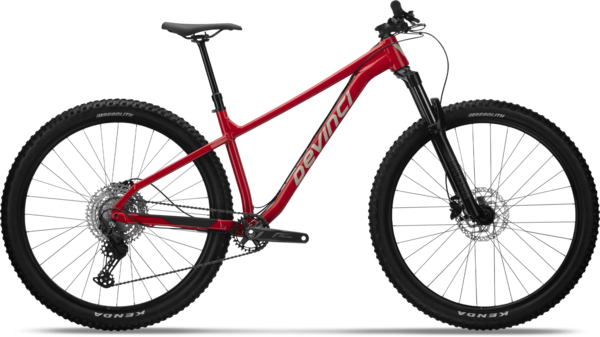

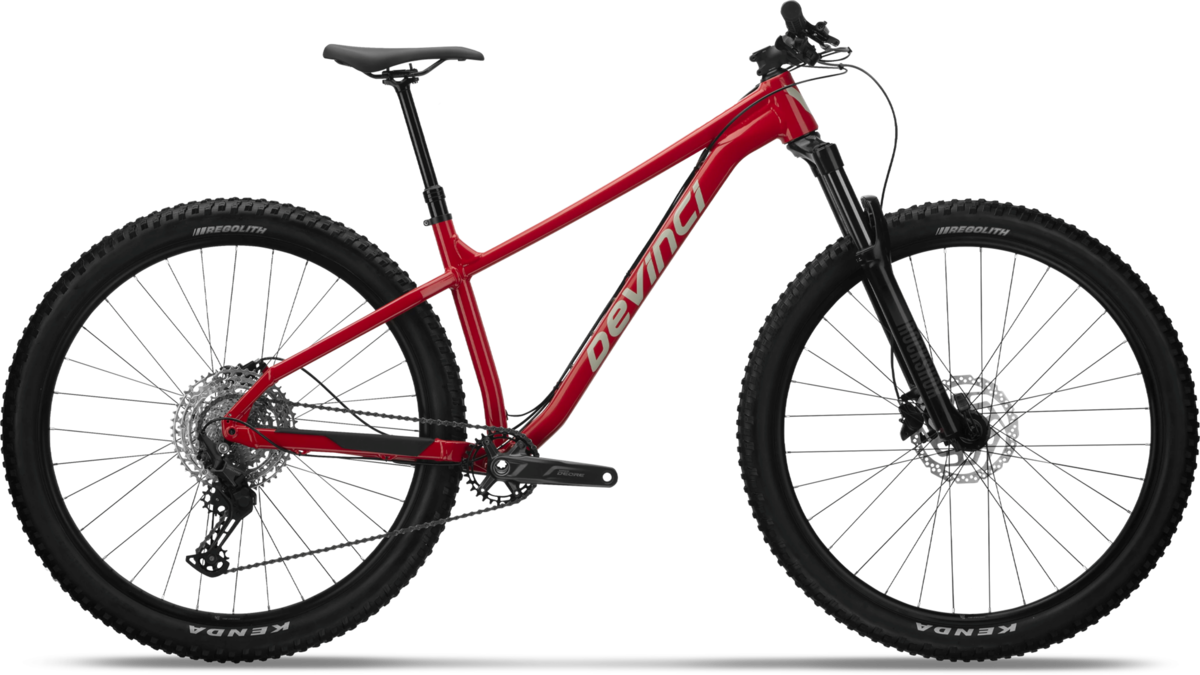

Kobain is a rock-solid, made-in-Canada hardtail, built to get you riding more trails, more often. Its modern geometry puts you in a powerful, confident riding position, so you can focus on what’s ahead, while the 29-inch wheels with generous clearance and thru-axles front and rear keep things solid on the trail. The Kobain is all about fun at a fair price. In other words, that means more time riding and less time working.
Technologies:
Made in Canada, Aluminum frame
- Canada-made 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes.
Threaded BB
- Threaded BB for headache-free removal and easy maintenance.
Updated Geometry
- Modern trail bike geometry featuring a longer reach and slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
Lifetime warranty
- Riding passions last a lifetime. Now your bike does too.
Dropper post compatibility
- 31.6mm dropper post
- S: 150 M: 175 L: 200 XL: 200
- Front ring clearance: Min 28T / Max 32T
Standard Boost 148
- Frames designed around Boost 148 offer ample tire clearance so you can take advantage of improved wheel stiffness.
- Maximum tire clearance: 29 x 2.6
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 390 | 420 | 445 | 490 |
| B - SA (DEG) | 75 | 75 | 75 | 75 |
| C - HA (DEG) | 65.5 | 65.5 | 65.5 | 65.5 |
| D - TT (MM) | 586 | 614 | 641 | 674 |
| E - REACH (MM) | 420 | 445 | 470 | 500 |
| F - CS (MM) | 435 | 435 | 435 | 435 |
| G - WB (MM) | 1162 | 1191 | 1220 | 1255 |
| H - BBH (MM) | 319 | 319 | 319 | 319 |
| I - SOH (MM) | 723 | 723 | 738 | 768 |
| J - STACK (MM) | 620 | 629 | 638 | 648 |
| K - HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 |
|---|---|
| Fork | Rockshox 35 Silver R Coil 130 | 51 Offset |
| Rims | V2 Comp 29 | 29mm inner | TR |
| Hubs | FRONT HUB: Formula DC-711 | Sealed | 6bolts | TA 15x110mm, Formula DC-3248 | Sealed | 6bolts |TA 12x148mm | HG |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires | Kenda Regolith | 29x2.6 |
| Bottom Bracket | Shimano BB MT501 | BSA | 68/73mm |
| Crankset | Shimano Deore M5100 | 30T |
| Shifters | Shimano Deore M5100 | 11s |
| Rear Derailleur | Shimano Deore M5100 | 11s |
| Cassette/Freewheel | Shimano M5100 | 11s | 11-51T | HG |
| Chain | Shimano HG601 | 11s |
| Brakes | Shimano MT200 | 2 Pistons |
| Rotors | Shimano RT26 | 180mm |
| Handlebars | V2 Pro | B:35mm | R:15mm | W:780mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | V2 Pro | B:35mm | L:50mm | 0° |
| Headset | FSA Orbit | 1.5E | Zero Stack |
| Seatpost | TranzX Dropper | 31.6mm | 1x Lever | 130mm |
| Saddle | Devinci |
| Pedals | Wellgo w/CRMO spindle |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Red DNA / Small / 29-inch | 883385208953 | FV22037211 | |
| Red DNA / Medium / 29-inch | 883385206454 | FV22037311 | BIK29797546A |
