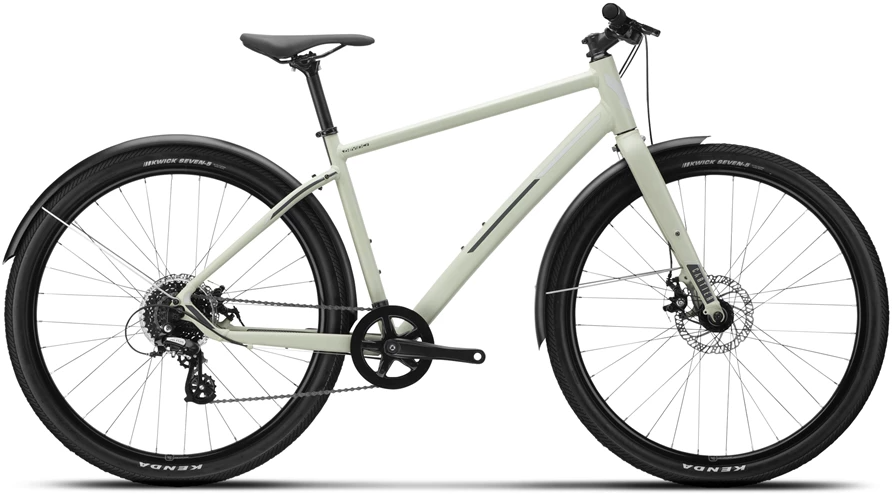

Devinci Cartier Altus 8S
This item is currently not available.
Details
DOWN FOR TOWN
The innovative commuter/urban platform mixes masterful aesthetics with nimble handling and turbo-charged acceleration. Optimum S02 Aluminum frame geometry riffs on Devinci's MTB DNA, putting riders in an upright, short-stem position for a tall view of tripping pedestrians and swerving cabs. Maneuverability, meanwhile, is enhanced by ultra-fast 27.5 wheels. Stop on a dime thanks to all-weather disc brakes. Additional city-inspired features include safety-striped paint, 2.0 tire clearance, and rear rack and fender compatibility.
Size | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
ST (mm) | 375 | 400 | 450 | 500 | 550 |
SA | 74.5° | 74° | 73.5° | 73° | 72.5° |
HA | 71° | 71° | 71° | 71° | 71° |
TT (mm) | 535 | 560 | 585 | 610 | 635 |
REACH (mm) | 389 | 402 | 415 | 428 | 439 |
CS (mm) | 430 | 430 | 430 | 430 | 430 |
WB (mm) | 1021 | 1042 | 1063 | 1083 | 1103 |
BBH (mm) | 285 | 285 | 285 | 285 | 285 |
SOH (mm) | 645 | 671 | 717 | 762 | 806 |
STACK (mm) | 526 | 550 | 573 | 597 | 620 |
HT (mm) | 100 | 125 | 150 | 175 | 200 |
Size | Rider Height (cm) |
---|---|
X-Small | 147-160 |
Small | 152-171 |
Medium | 169-180 |
Large | 178-187 |
X-Large | 185-193 |
Specs
Frame | Aluminum Optimum G02 |
---|---|
Fork | Devinci Aluminum Optimum G02 |
Rims | V2 Comp db | 18mm inner |
Hubs |
Front: Formula Disc | QR 9x100mm Rear: Formula Disc | QR 10x135mm |
Spokes | Stainless 14G |
Tires | Kenda Kwick Seven.5 | 27.5x1.75 |
Crankset | Alloy | 36T |
Shifters | Shimano M310 | 8s |
Rear Derailleur | Shimano Altus M310 | Smart Cage | 8s |
Cassette/Freewheel | Sunrace | 8s | 11-34T |
Chain | KMC Z | 8s |
Brakes | Tektro MD-M280 | Mechanical |
Rotors | Stainless | 160mm |
Brake Levers | Tektro ML-520 |
Handlebars | V2 Comp | B:31.8mm | R:10mm | W:680mm |
Tape/Grips | Devinci Foam | w/lock |
Stem | V2 Pro | B:31.8mm | 17° |
Headset | CH-9280 | Zero Stack |
Seatpost | Devinci | 27.2mm |
Saddle | Devinci |
Accessories & Extras | CD-04D Chain Guide |
* Subject to change without notice.
